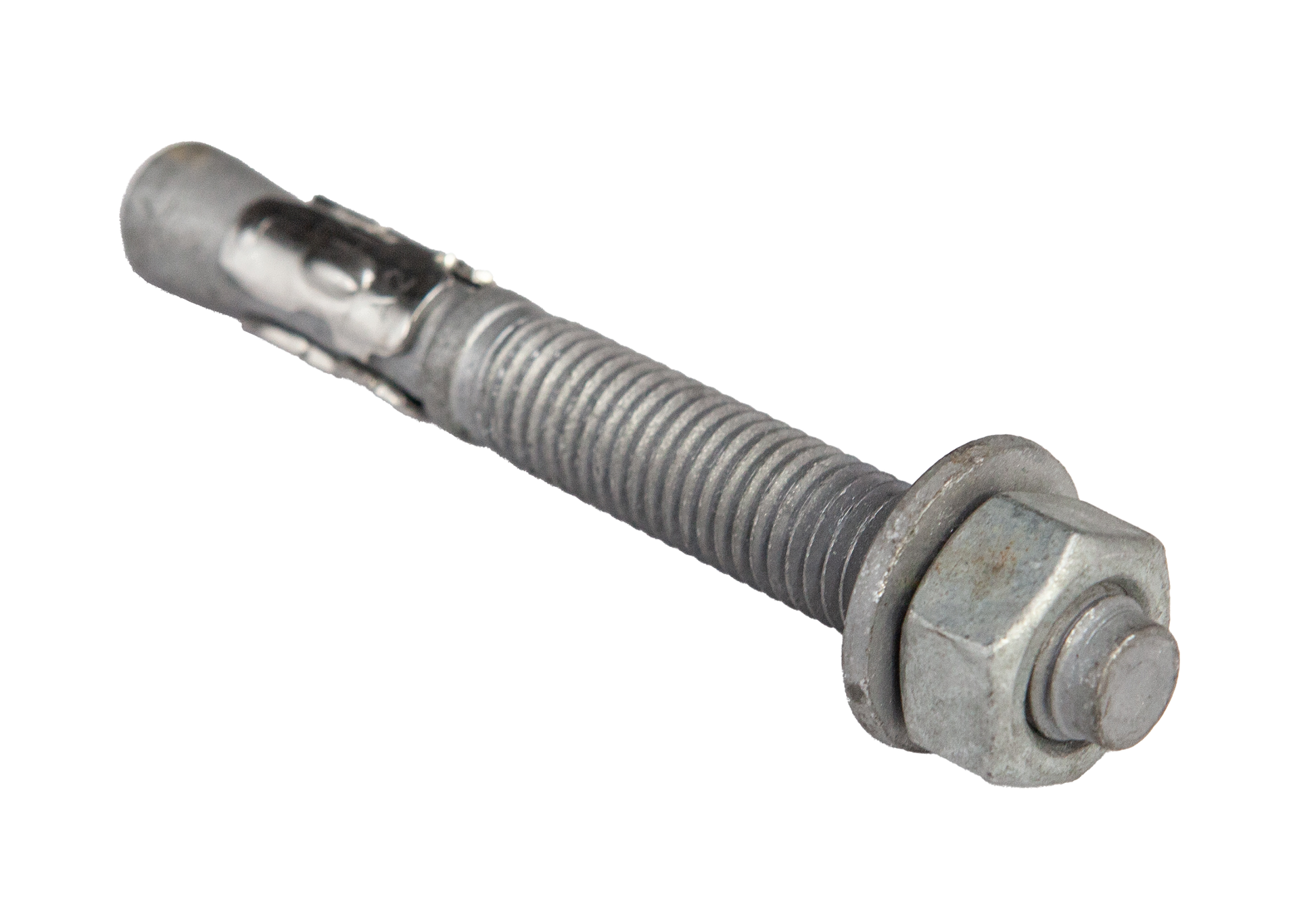

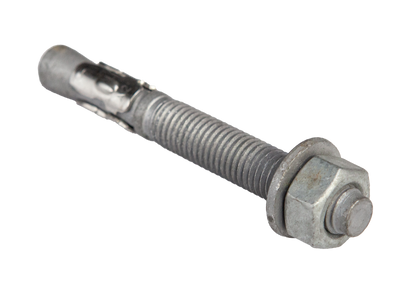

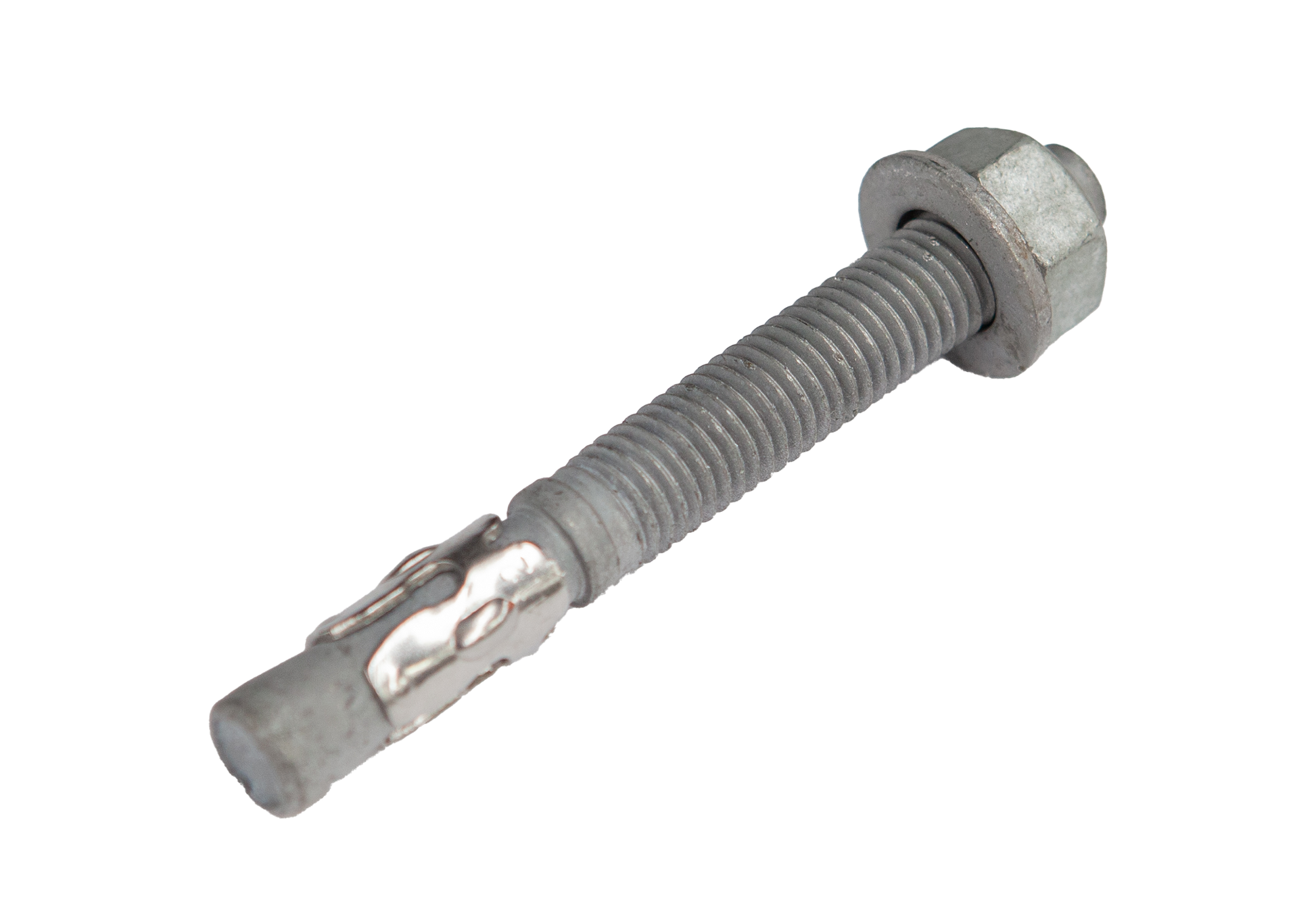

M12x100 HDG Trubolt

M12 x 100 Galvanised Through Bolt Anchor, Mechanical Galvanised
This is the most common method of fixing Guardrail Directs surface mounted products to a concrete slab/foundation. Offering excellent value for money and quick installation all that is needed is a 12mm masonry drill and a 19mm socket/wrench

Descriptions
• Through Bolts (Clawbolts) are preassembled single unit wedge type anchors used in solid concrete applications.
• Fixing is achieved by controlled torquing of the nut which draws the tapered section up in to the clip, thereby expanding it outward and forcing the clawbolt against the sidewall of the pre-drilled hole.
