Small Internal Bend

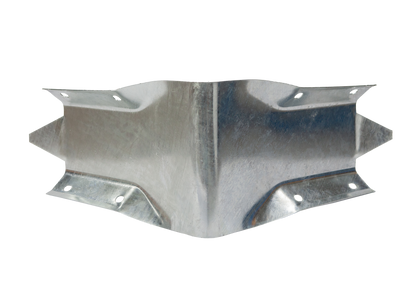

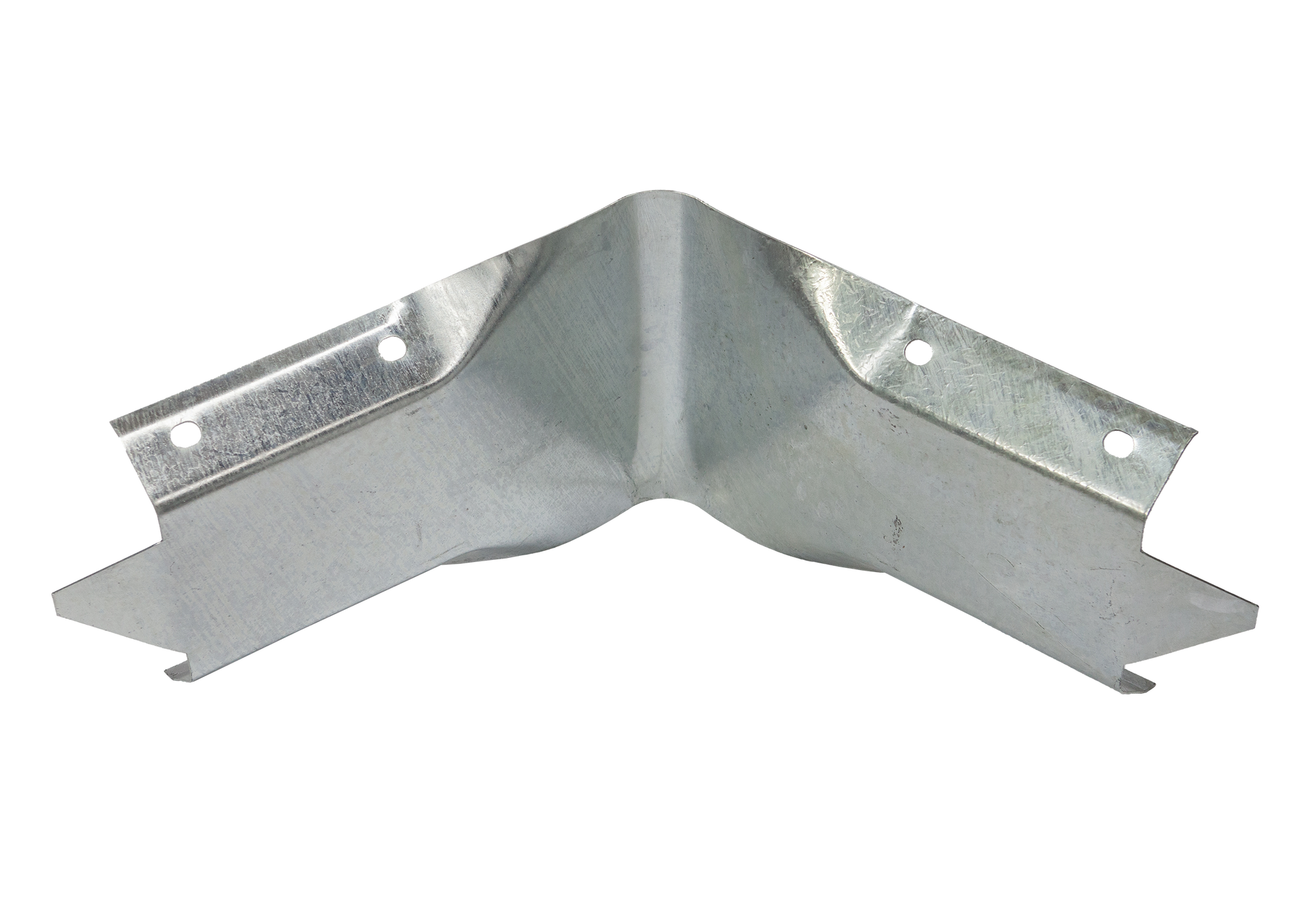

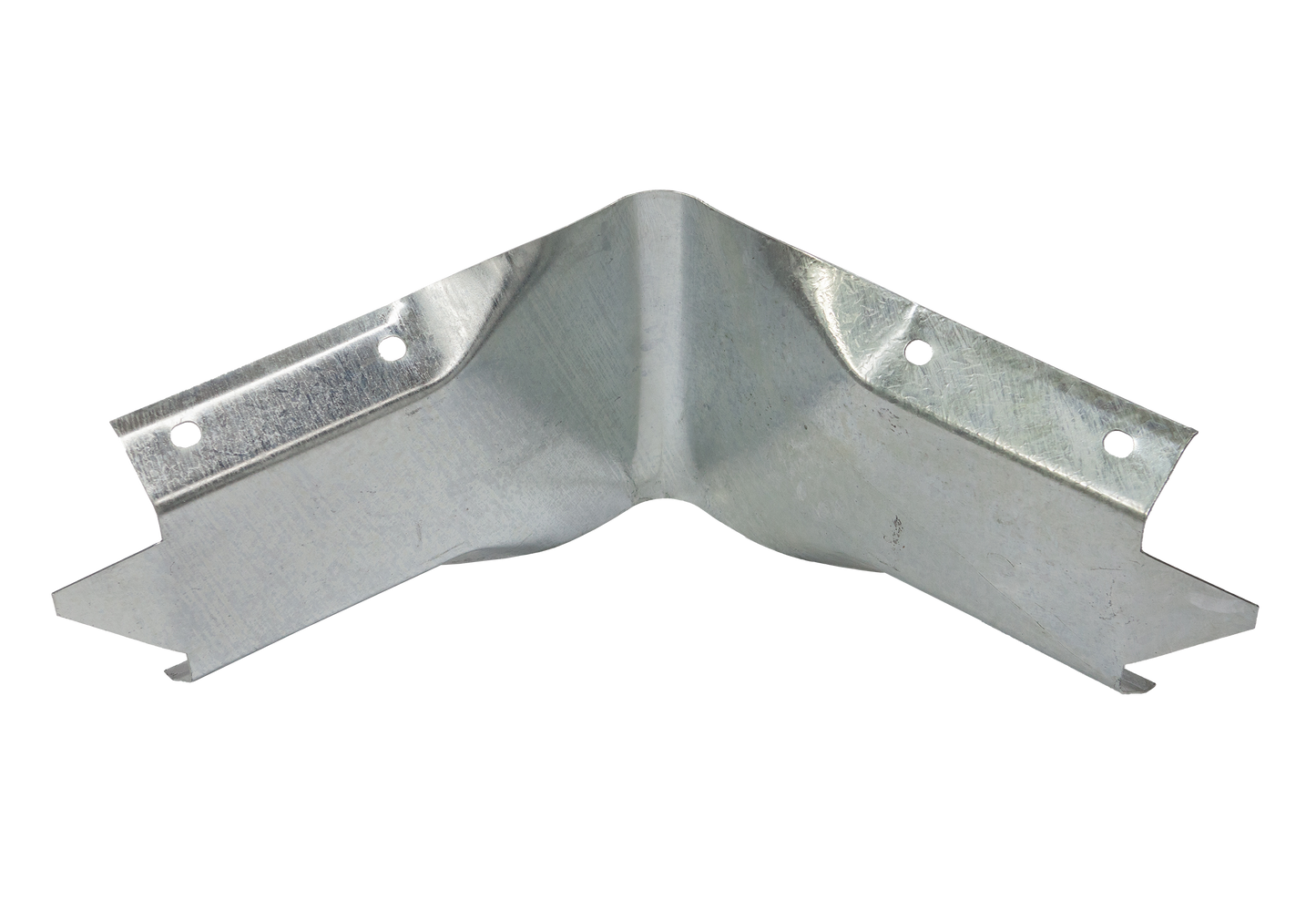

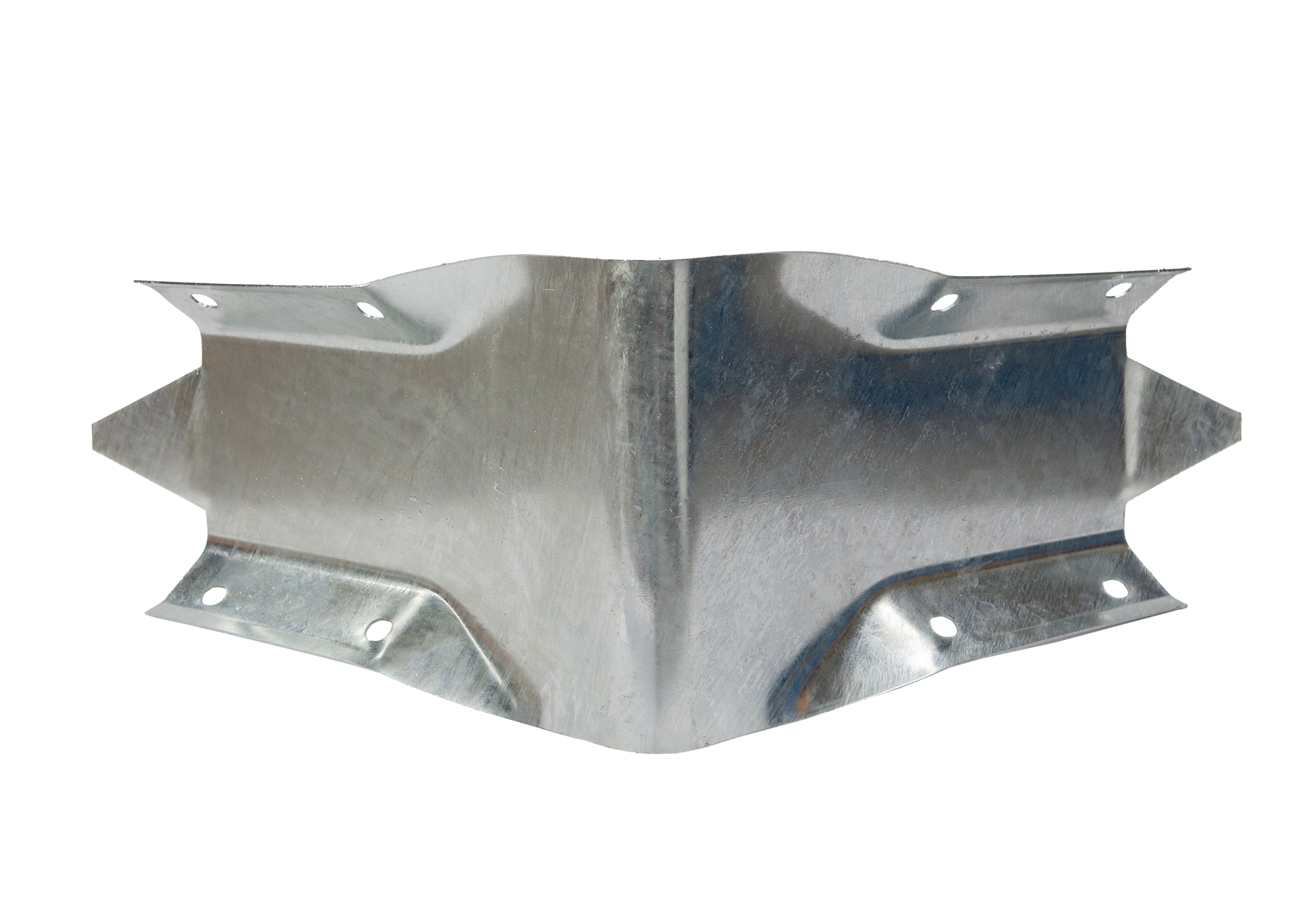

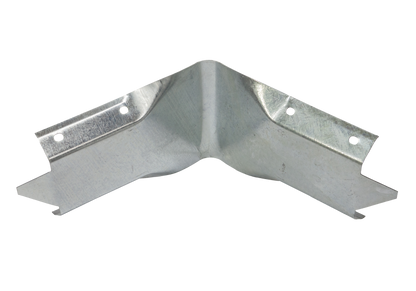

Small Right Angled Bend Internal - SRABI
Our internal 90-degree bends provide an innovative solution for maintaining a continuous, streamlined safety barrier while allowing for smooth directional changes. The Small Right Angle Bend is preset to 90 degrees but can easily be adjusted to suit the specific angle you require, offering the flexibility to meet a variety of design needs.
Designed to integrate seamlessly into your existing guardrail system, this product enables you to redirect your guardrail run at a precise angle—whether it's 90 degrees or slightly more or less—without breaking the continuity of the barrier. This ensures both the safety and visual integrity of your installation.

Specifications:
Material: 2.5mm HA250 to AS/NZS 1594

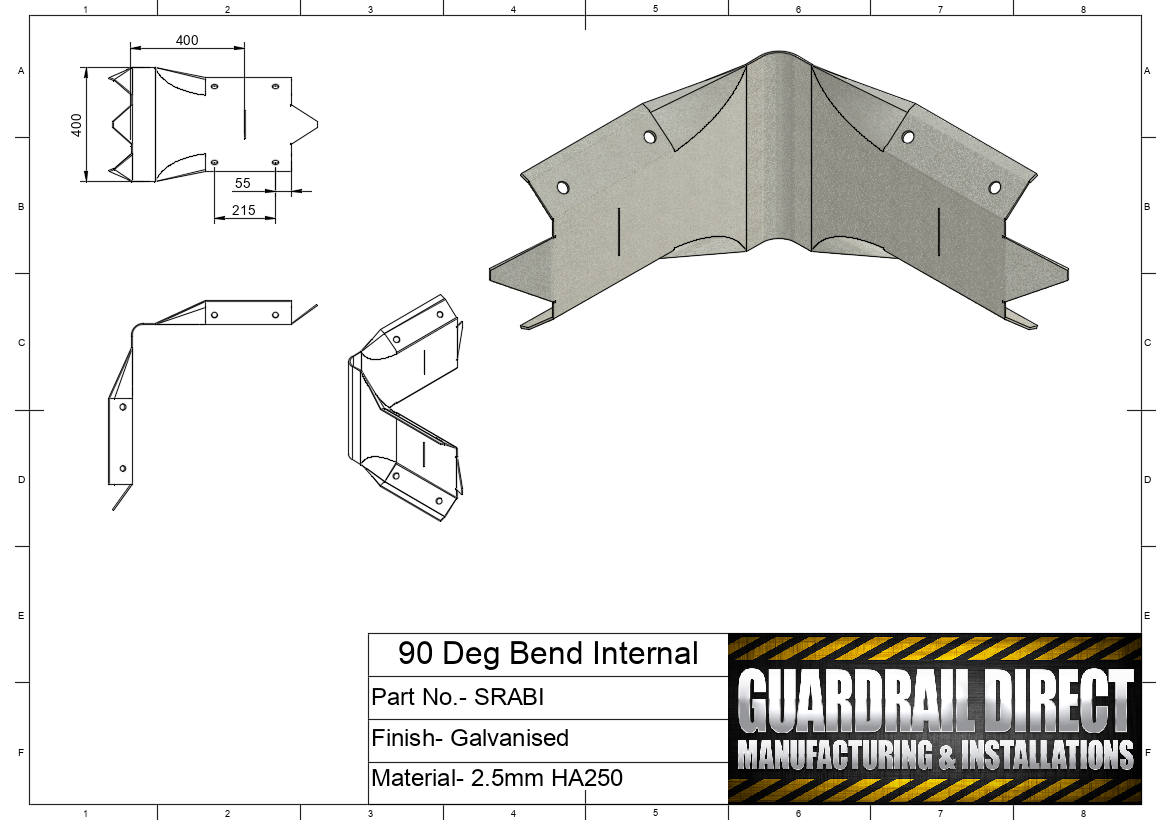

Dimensions: 700mm x 700mm Long x 400mm Wide
Weight: 11Kg
Finish: Hot Dip Galvanized to AS 4680:2006

As we are an Australian manufacturer of W-Beam products we can manufacture guardrails to any height, length, or design specification you require, ensuring they fit perfectly within your project parameters. Contact our team for a free quote.
