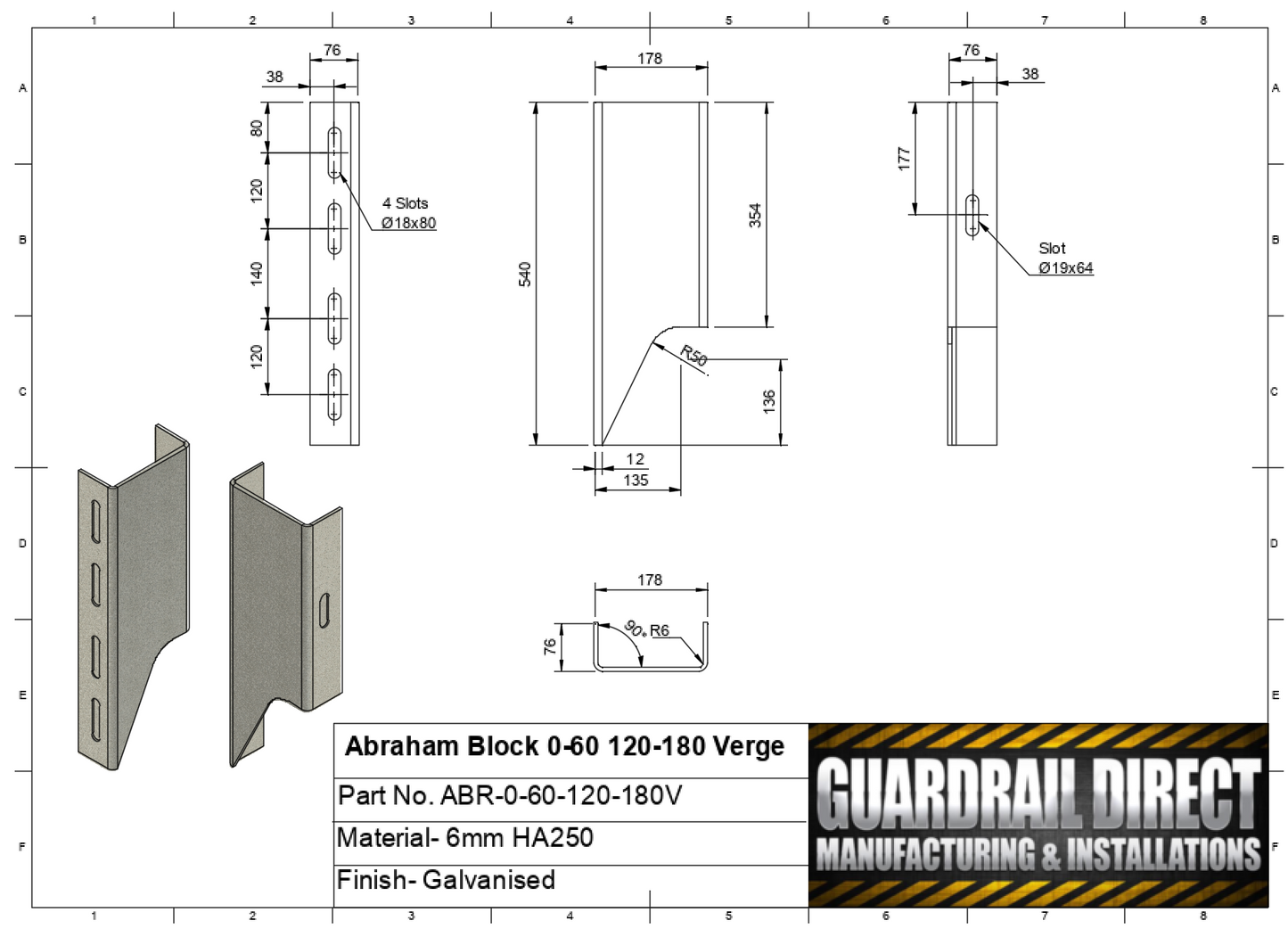

Abraham Block 0-60 & 120-180 Rise Verge

Abraham Block 0-60 & 120-180 Verge - ABR-0-60-120-180V

Guardrail Directs Abraham blocks have been designed to easily raise the installation height of guardrail without having to lift the posts.
These blocks have 2 sets of slots allowing the guardrail to be lifted by 0-60mm or 120-180mm and this block is folded to suit posts on the verge of the roadway.

Manufactured with the same 6mm “C” channel as our guardrail posts, they are designed to provide extra energy absorption and help space guardrail past the kerb if the posts have been installed at the back of kerb.

Specifications:
Length: 540mm Long
Material: 6.0mm HA250 to AS/NZS 1594
Dimensions: 178x76x6mm Post Section
Weight: 9Kg
Finish: Hot Dip Galvanized to AS 4680:2006

As we are an Australian manufacturer of W-Beam products we can manufacture guardrails to any height, length, or design specification you require, ensuring they fit perfectly within your project parameters. Contact our team for a free quote.
