700mm Post on Baseplate Yellow

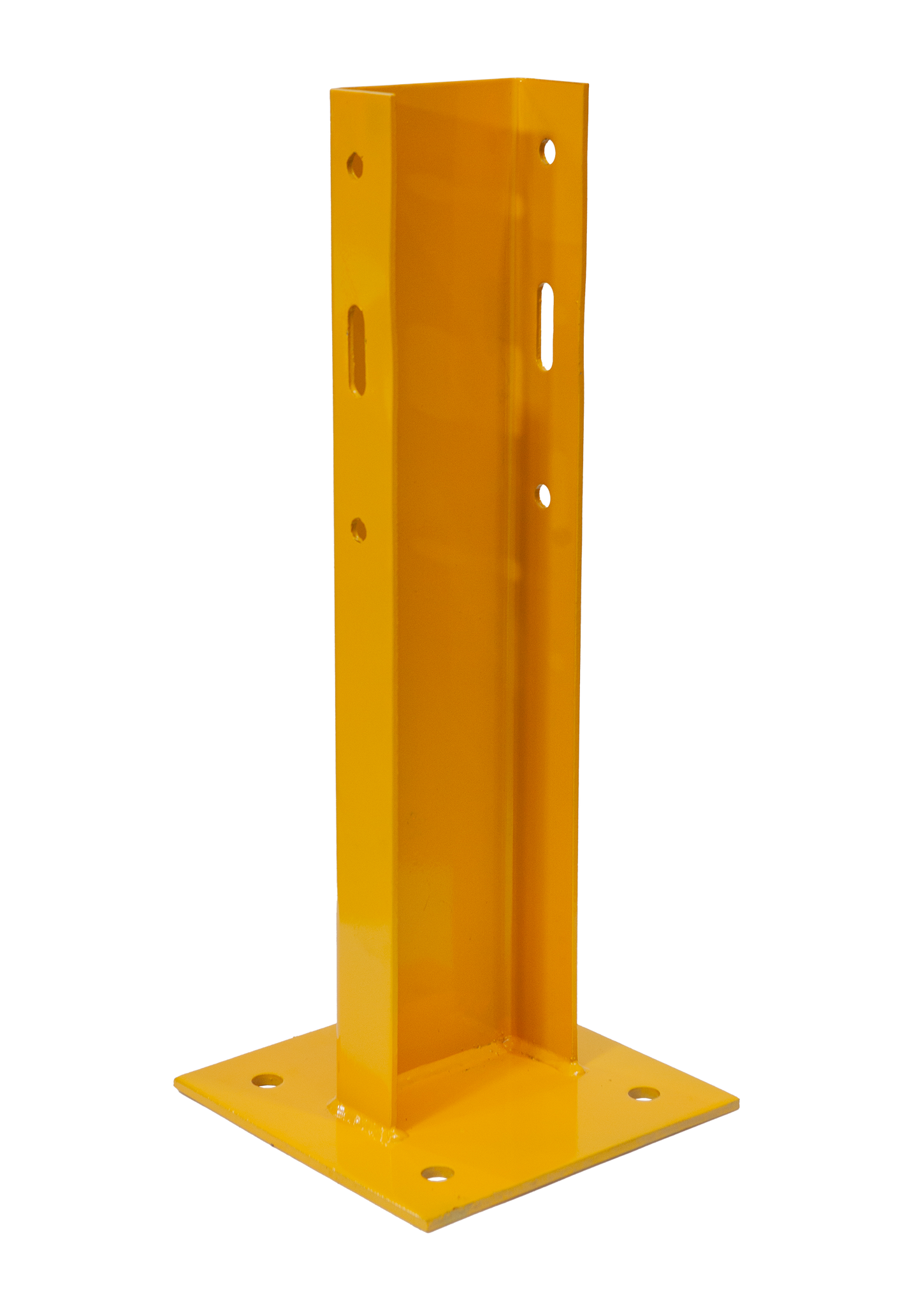

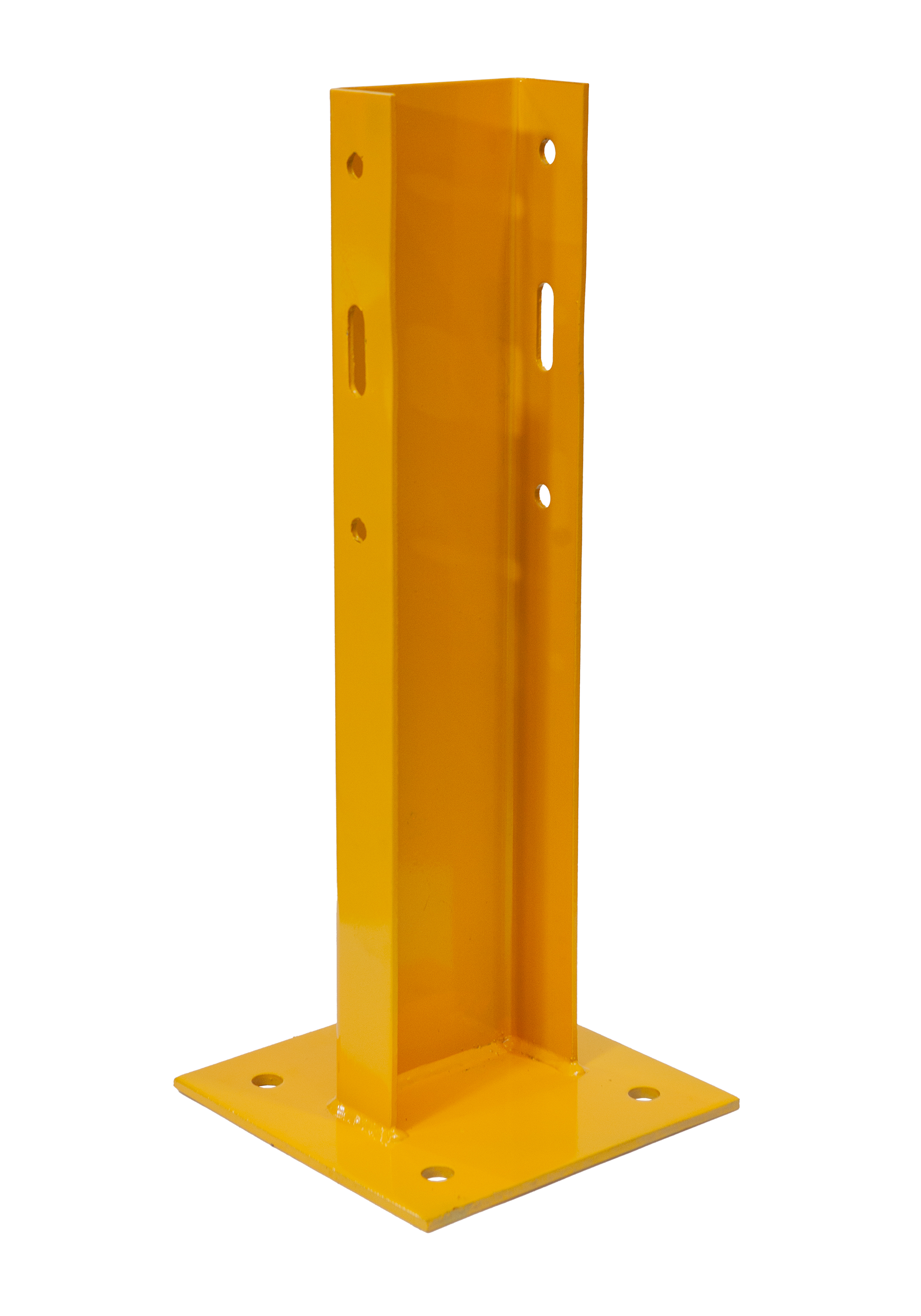

700mm Guardrail Post On Baseplate Yellow – 700PWBY

At Guardrail Direct, we manufacture and supply premium guardrail posts on baseplates, which are the ideal solution for securely fixing W-beam guardrails to concrete surfaces. These posts are commonly used in roadside safety barriers, warehouses, and industrial guardrail systems, offering exceptional durability and protection.

Manufactured with a 6mm “C” channel post welded to a robust 300mm x 300mm x 10mm baseplate, they are designed to provide maximum strength and stability. The baseplate features 24mm holes, optimised for use with 20mm true bolts or chemset studs, ensuring a superior and secure hold.

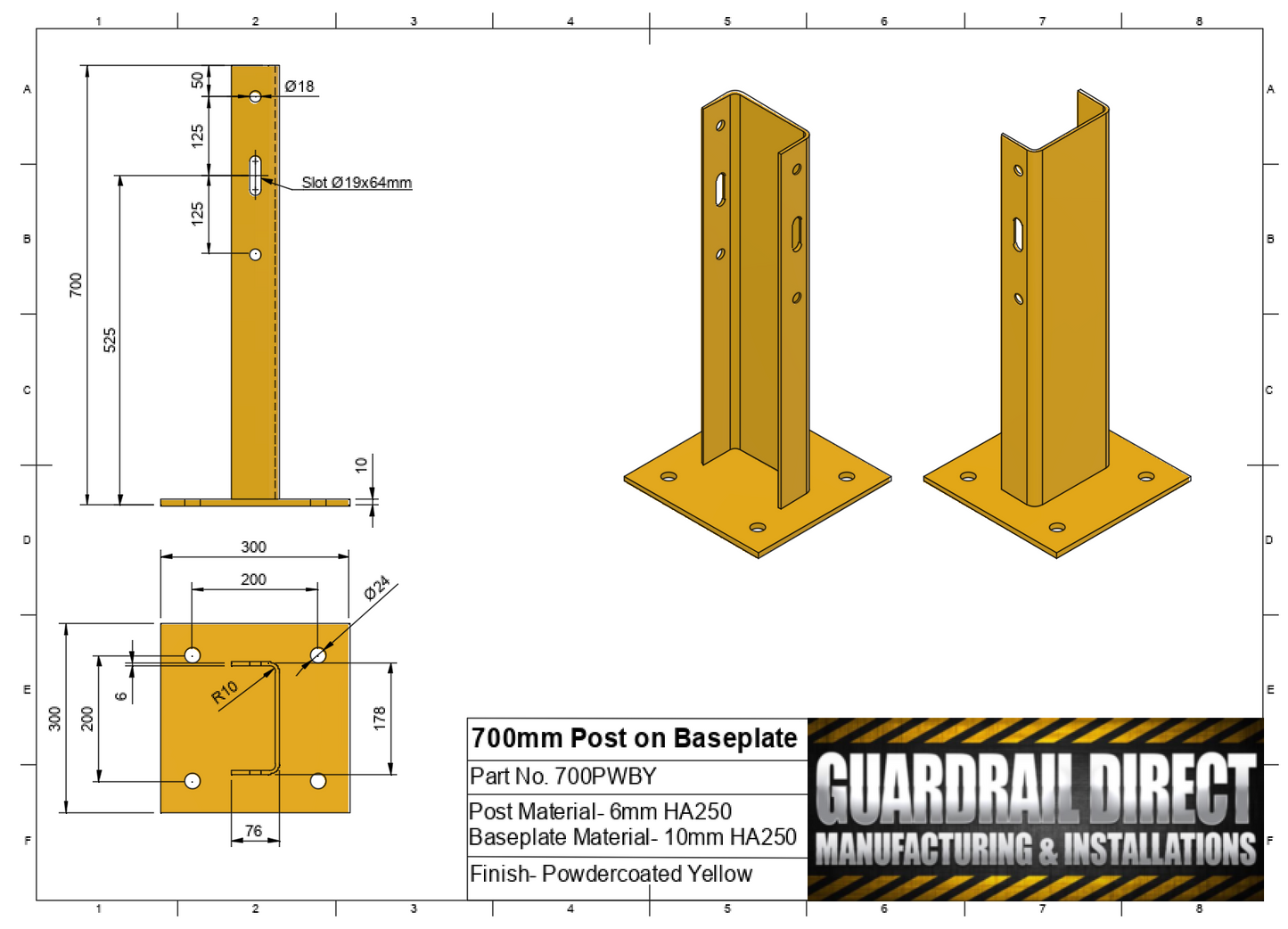

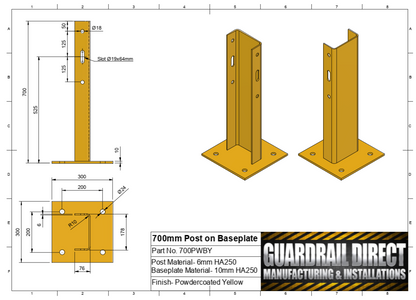

Specifications:
Length: 700mm from ground to top of post
Material: 6.0mm HA250 to AS/NZS 1594
Dimensions: 178x76x6mm Post Section
300x300x10mm Baseplate
Weight: 17Kg
Finish: Hot Dip Galvanized to AS 4680:2006 Then Powder coated to Safety Yellow

As we are an Australian manufacturer of W-Beam products we can manufacture guardrails to any height, length, or design specification you require, ensuring they fit perfectly within your project parameters. Contact our team for a free quote.
